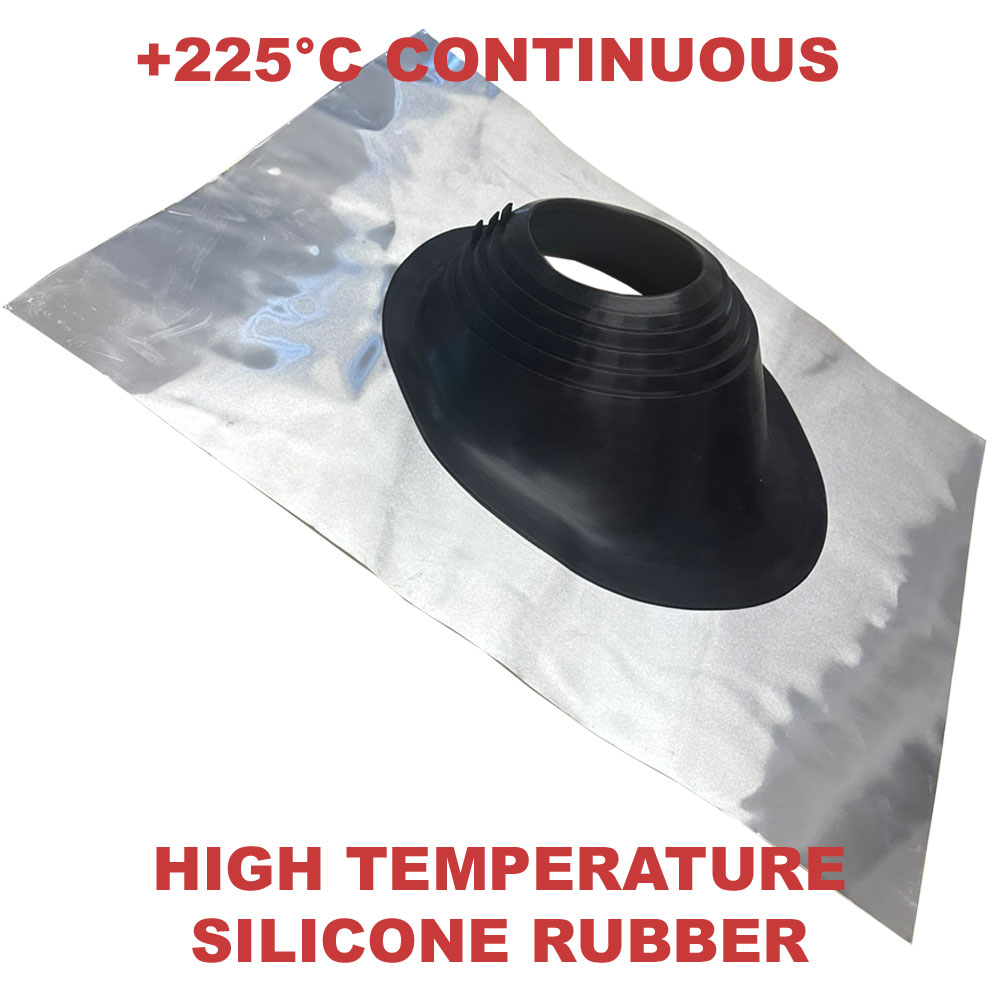

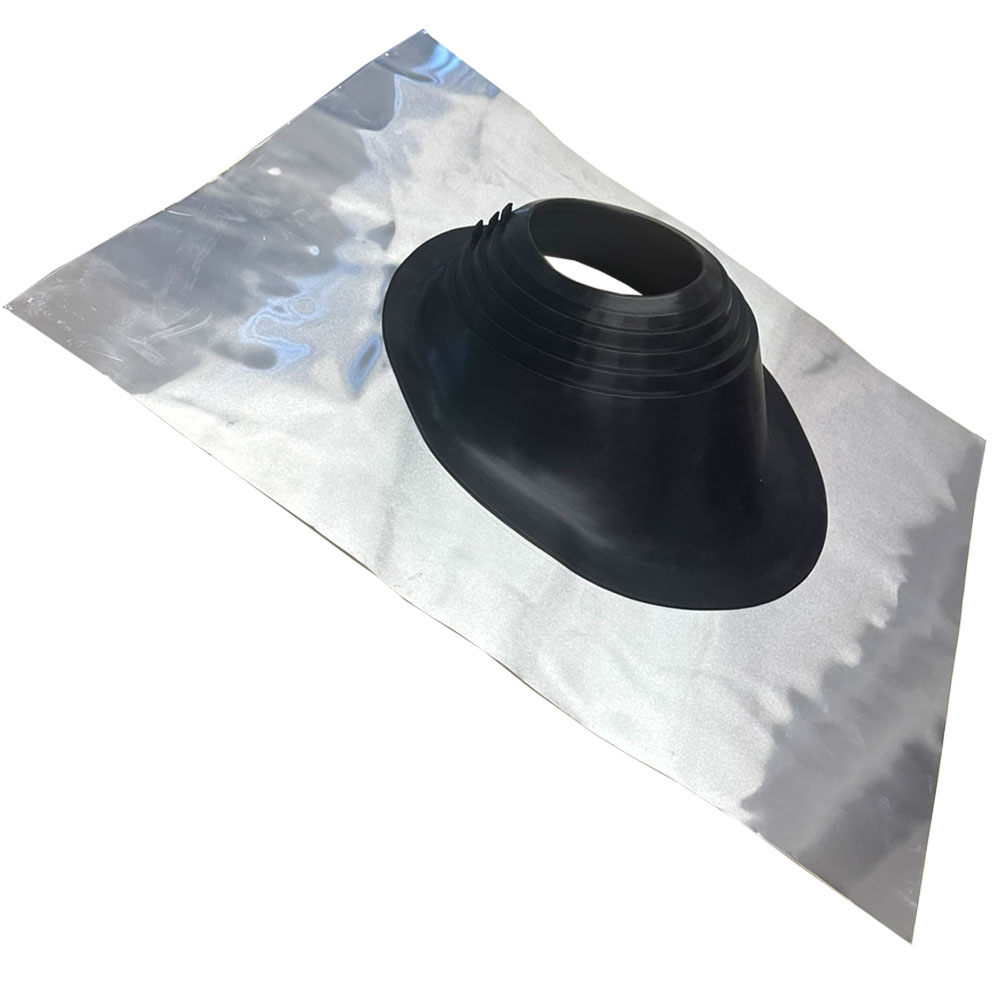

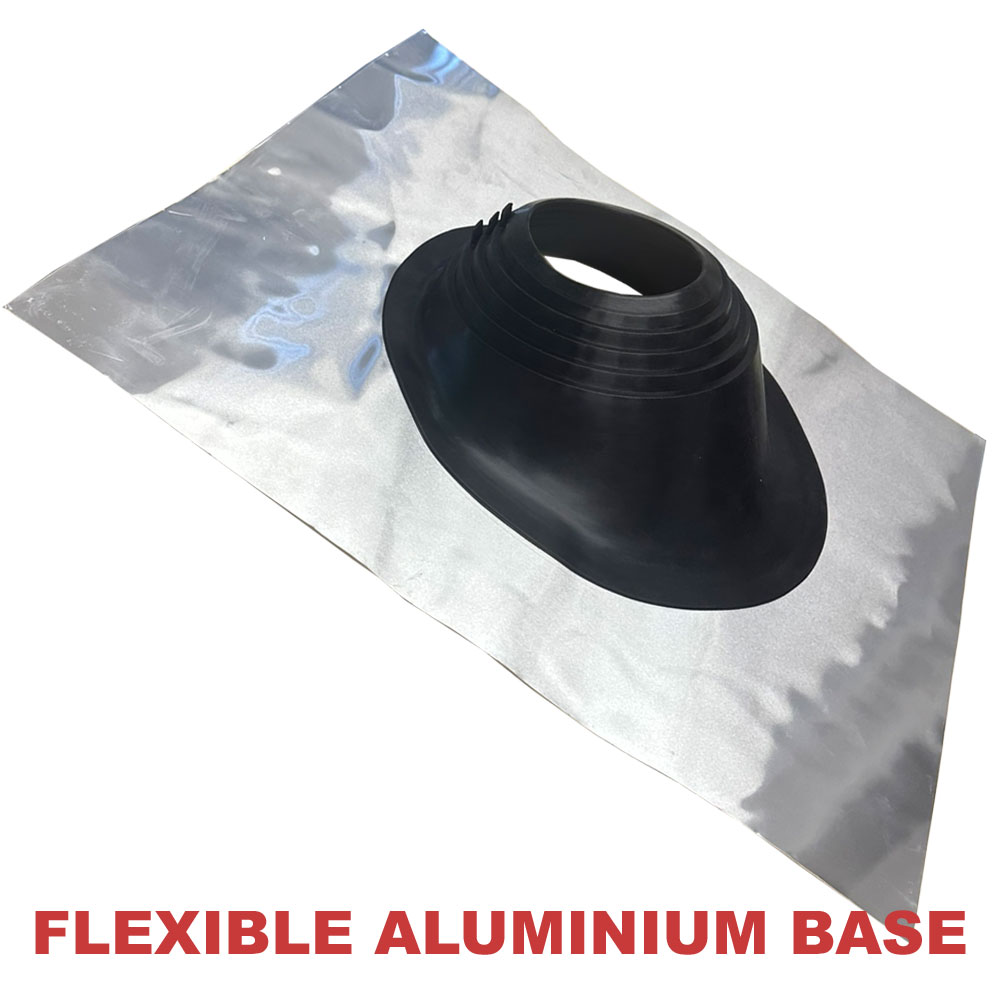

This pipe flashing is suitable for use with tiled roofs. This high temperature SILICONE cone is suitable for temperature resistance of +225 Degrees C continuous, and up to +260 Degrees C intermittently.
Specification
Base dimensions:- 760mm x 660mm
Suits Pipe Diameters:- 200mm to 275mm
Suits Roof Pitches:- 20-45 degrees
Temperature Range:- -50 to +225 Degrees C, and up to 260 Degrees C intermittently.
Installation
1. Pull tab design to correct size using pliers, alternatively cut using a stanley knife.
2. Apply silicone sealant to back of flashing.
3. Remove tiles around pipe and slide flashing over pipe.
4. Fasten flashing to the roof.
5. Cut tile to fit to the top of the flashing allowing the bottom of the flashing metal base to sit on top of the tiles.
